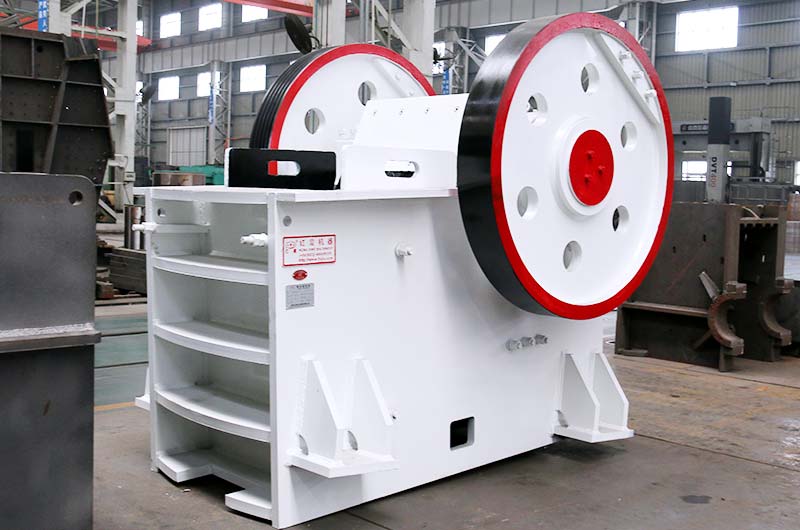

The Handling Materials and Application of Primary Crusher:

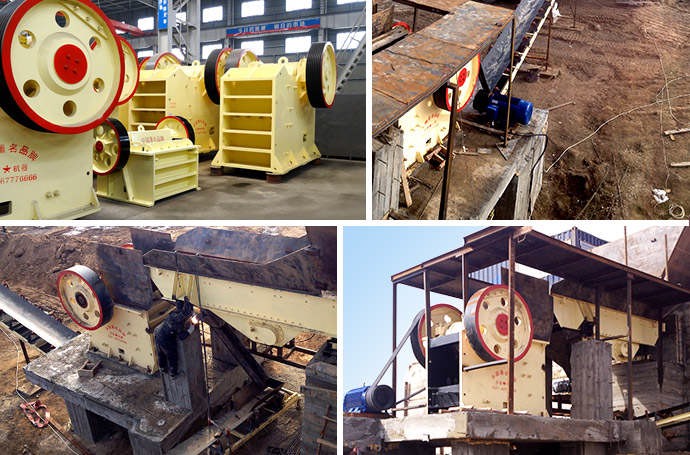

1. Primary crusher Widely applied in mining, road&railway, concrete, chemical and building material industries.
2. Ores and rocks with various hardness
3. Concrete basis and steel structure basis
4. Stationary, half-mobile and mobile applications
The Performance Characteristics of Primary Crusher:
High reduction ratio, uniform production size, long service life, simple construction, excellent productivity, easy maintenance, low energy consume and so on, they are the priority products as the primary crushing.
What can you get?
Latest Price List/Free Customized Solution/Maintenance & Installation Guide
-
Free customized solutions
Customize different models according to your needs（Small, medium, and large machine）.
-
Factory direct sales
We have three production bases, guarantee 100% factory price of all products, and support export to
all over the world.
-
24-hour online service
We have professional customer service staff, ready to answer your questions about our products.
Technical Parameter
| Model |
Feed opening size(mm） |
Max.Feeding size (mm) |
Adjustment range of discharge port (mm) |
Capacity(t/h) |
Rotation speed of eccentric shaft(r/min) |
Power (kw) |
Dimensions（L×W×H） (mm) |
| PE 150×250 |
150×250 |
125 |
10-40 |
1-3 |
268 |
4P 5.5 |
760×700×860 |
| PE 200×300 |
200×300 |
180 |
15-50 |
2-6 |
260 |
4P 7.5 |
915×780×990 |
| PE 200×350 |
200×350 |
180 |
18-60 |
3-10 |
276 |
4P 11 |
1000×914×1112 |
| PE 250×400 |
250×400 |
210 |
20-70 |
5-21 |
300 |
6P 15 |
1100×1032×1285 |
| PE 400×600 |
400×600 |
340 |
40-100 |
16-64 |
270 |
6P 30 |
1623×1736×1615 |
| PE 500×750 |
500×750 |
425 |
50-100 |
40-110 |
268 |
6P 55 |
1920×1850×1920 |
| PE 600×750 |
600×750 |
500 |
150-200 |
80-240 |
268 |
6P 55 |
2020×1850×1920 |
| PE 600×900 |
600×900 |
500 |
65-160 |
50-160 |
254 |
6P 55 |
2530×1900×2340 |
| PE 750×1060 |
750×1060 |
630 |
80-180 |
110-320 |
245 |
8P 110 |
2680×2380×2785 |
| PE 900×1200 |
900×1200 |
750 |
100-200 |
220-380 |
208 |
8P 110 |
3470×2876×3330 |
| PE1200×1500 |
1200×1500 |
1020 |
150-350 |
400-1000 |
180 |
8P 160-245 |
4850×3220×3680 |
| PE1500×1800 |
1500×1800 |
1200 |
220-350 |
500-1200 |
180 |
8P 280-380 |
5160×3660×4248 |
| PEX 150×750 |
150×750 |
120 |
18-48 |
8-25 |
320 |
4P 15 |
1170×1575×1030 |
| PEX 250×750 |
250×750 |
210 |
25-60 |
13-35 |
320 |
6P 22 |
1550×1730×1470 |
|
PEX
250×1000
|
250×1000 |
210 |
25-60 |
16-52 |
330 |
6P 30 |
1580×2006×1390 |
|
PEX
250×1200
|
250×1200 |
210 |
25-60 |
20-61 |
330 |
6P 37 |
1780×2214×1430 |
|
PEX
300×1300
|
300×1300 |
250 |
20-90 |
16-105 |
300 |
6P 55 |
2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
