Wotetrack Mobile Sand Maker Station

Wotetrack Mobile Sand Maker Station

Processing capacity: Depending on the process

Feeding size: ≤40mm

Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.

Email us: sell@hxjq.com

The Usage and Description of Wotetrack Mobile Sand Maker Station:

Wotetrack Mobile Sand Maker Station, as a kind of crushing and screening equipment, is also called Crawler-type Hydraulic Drive Crushing Station. Not only does it adopts the hydraulic system driving crawler to run smoothly, but also can adapt to various complex operating conditions.

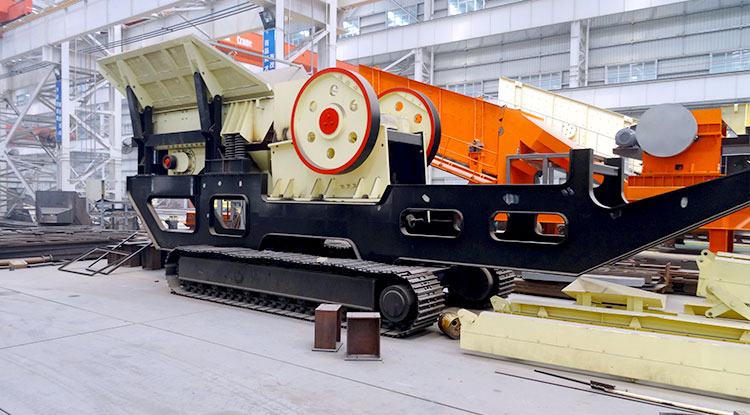

Crawler-type Mobile Crusher

Wotetrack Mobile Sand Maker Station Features:

1. The chassis adopts steel ship structure with high strength and it is highly adaptable to different working sites

2. The well-known brand motor achieves the good performance of the power system, with features of low noise and energy saving, etc

3. The generator set can be equipped, work normally under complex situations, such as the situation of no power or sudden power off, ensuring continuous operation and reducing unnecessary loss

mobile_crusher

Technical Parameter

Model WT0818 WT0926
Dimensions of Transmission Devices Length 14000mm 14000mm
Width 3200mm 3200mm
Height 3600mm 3600mm
Weight 30t 35t
Feeder Hopper Volume 3m³ 3m³
Loading Height 2600mm 2600mm
Models and Dimensions of Belt Conveyors B1000×6000mm B1000×6000mm
Crusher Model HVI0818 HVI0926
Feeding Size 35mm 40mm
Double Motor Power 2×90kw 2×132kw
Main Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×10000mm
Dumping Height 3200mm 3200mm
Diesel Engine Power 75kw 75kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 202.5kw 286.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)
