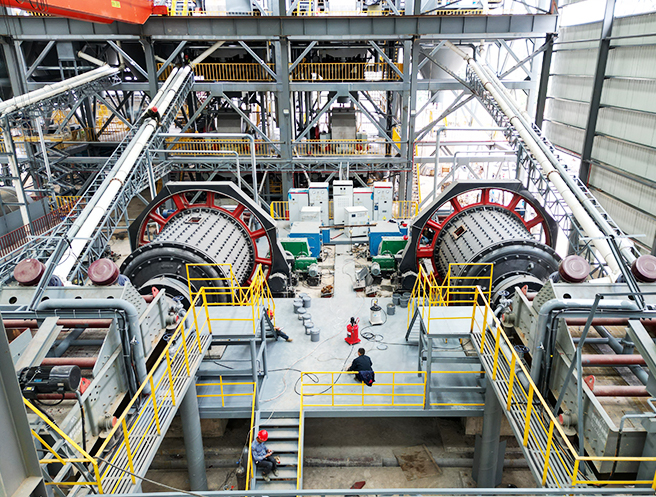

Introduction of Copper Ore Processing Plant

Flotation separation process is often used in the copper ore processing plant. Before the flotation of the medicine, the copper ore is coarsely ground into small pieces, and then ground to a certain particle size, and then the beneficiation agent is added therein. In this way, the ore particles float up, and the final foam product is collected and further dehydrated to obtain copper concentrate, which is sent to the smelter for copper smelting.

Flotation equipment is mainly flotation machine and other equipment to realize flotation process. Flotation machine is made up of many cells in series. HXJQ has different types of flotation machines available, such as SF flotation machine, XCF flotation machine, KYF flotation machine, BF flotation machine.

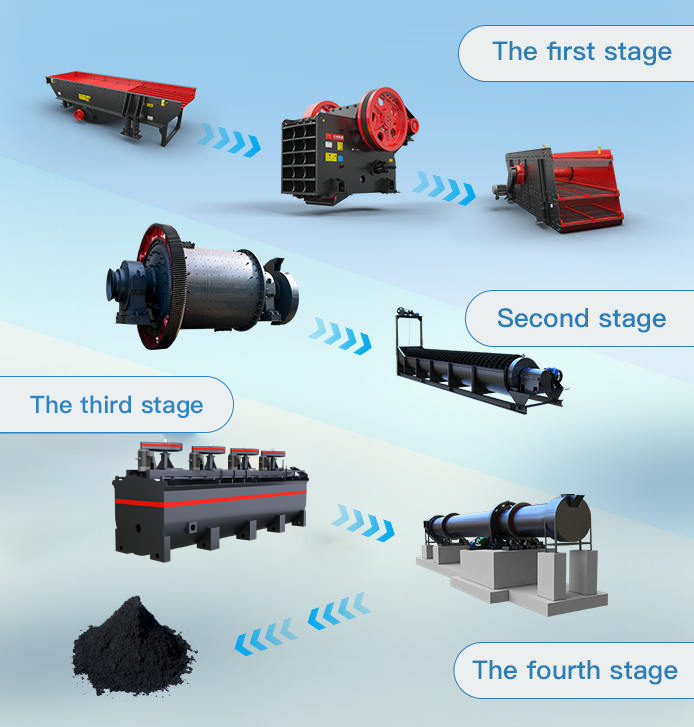

Flotation Separation Process

Related Euipment: Jaw Crusher, Ball Mill, Spiral Classifier, Magnetic Separator, Flotation Machine

Technical Requirements

• 1.The flowchart is just for reference.
• 2.The process is adjustable according to the site requirements, but part placement cannot be changed.
• 3.Foundation dimensions of equipments are subject to our drawing.
• 4.Any question pls contact us online.
