The Handling Materials and Application of Mobile Screening Station:
Wotetrack Mobile Screening Station can process those materials such as river gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal gangue, which can be widely used in the following fields such as aggregate field, concrete mixing plant, dry mortar plant, desulfurization, quartz sand, etc.
The Description and Features of Mobile Screening Station:

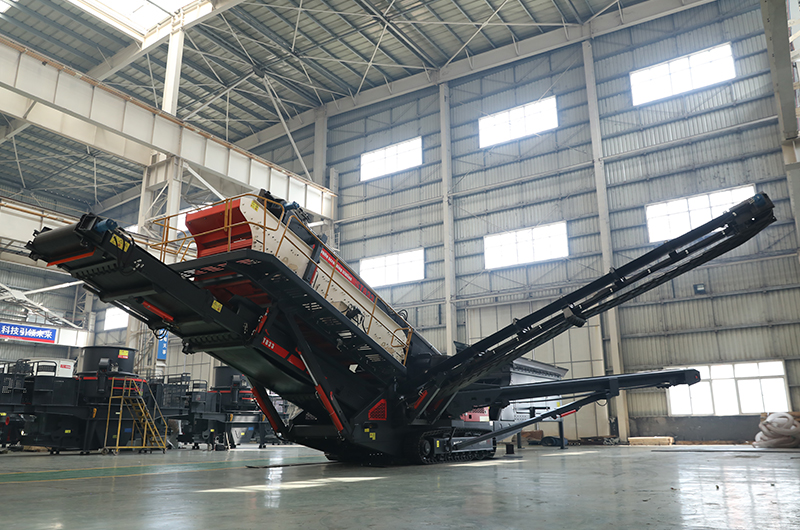

The crawler type Wotetrack Mobile Screening Station, also called circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety.
What can you get?
Latest Price List/Free Customized Solution/Maintenance & Installation Guide
-
Free customized solutions
Customize different models according to your needs（Small, medium, and large machine）.
-
Factory direct sales
We have three production bases, guarantee 100% factory price of all products, and support export to
all over the world.
-
24-hour online service
We have professional customer service staff, ready to answer your questions about our products.
Technical Parameter
| Model |
ST673 |
ST993 |
ST1303 |
| Dimensions of Transmission Devices |
Length |
11000mm |
12500mm |
12500mm |
| Width |
3800mm |
4000mm |
4000mm |
| Height |
3800mm |
3900mm |
3900mm |
| Weight |
28t |
33t |
38t |
| Feeding Belt Conveyor |
Dimensions(Width×Length) |
1000×10000mm |
1000×10000mm |
1000×13000mm |
| Loading Height |
2560mm |
2680mm |
2700mm |
| Vibrating Screen |
Model |
3HX1545 |
3HX1855 |
3HX2160 |
| Sieving Layers |
3 |
3 |
3 |
| Belt Conveyor |
Dimensions(Width×Length) |
1000×7400mm |
1000×7500mm |
1000×7500mm |
| Discharging Height |
3380mm |
3460mm |
3460mm |
| Belt Conveyor for Coarse Material |
Dimensions(Width×Length) |
500×5600mm |
650×5800mm |
650×5800mm |
| Discharging Height |
3430mm |
3570mm |
3570mm |
| Belt Conveyor for Medium-Sized Material |
Dimensions(Width×Length) |
500×5300mm |
650×5400mm |
650×5400mm |
| Discharging Height |
3150mm |
3250mm |
3250mm |
| Belt Conveyor for Fine Material |
Dimensions(Width×Length) |
500×5600mm |
650×5800mm |
650×5800mm |
| Discharging Height |
3030mm |
3080mm |
3080mm |
| Transferring Belt Conveyors |
Dimensions(Width×Length) |
500×2000mm |
650×2000mm |
650×2000mm |
| Discharging Height |
2130mm |
2130mm |
2130mm |
| Diesel Engine |
Power |
75kw |
75kw |
96kw |
| Manufacturer |
Carter Perkins |
Carter Perkins |
Carter Perkins |
| The Main Machine |
Power |
54kw |
57.5kw |
65.5kw |
| Ways of Controlling |
Wired/Wireless (optional) |
Wired/Wireless (optional) |
Wired/Wireless (optional) |
Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
